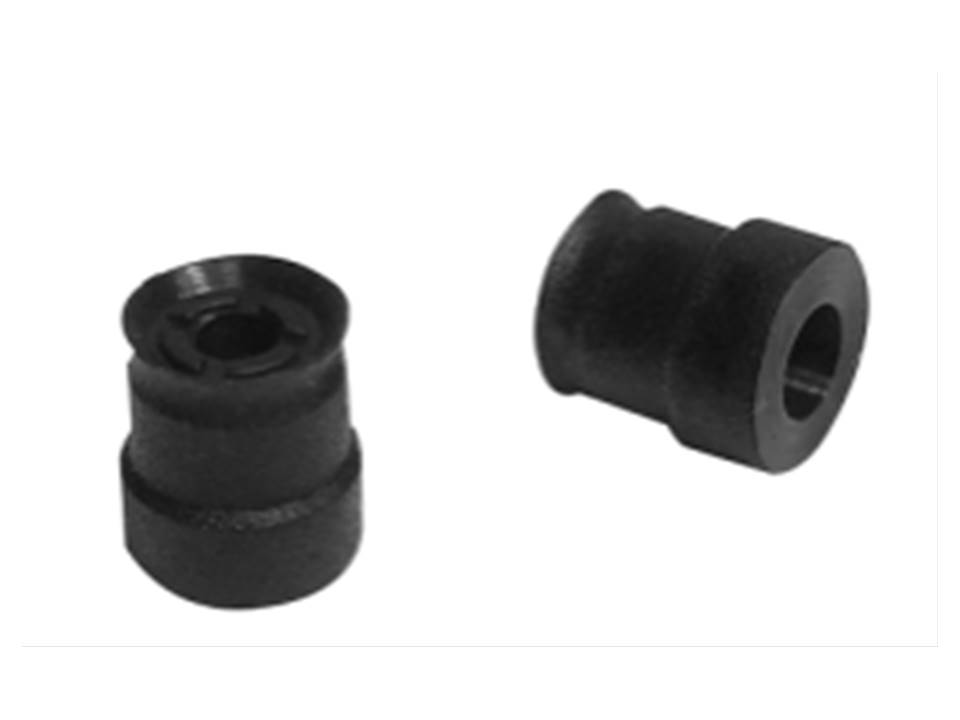

ESD Flat Suction Cup Series 2
Category: FlatFlat Vacuum Pad series particularly for fast and precisely gripping.
Suitable for handling flat work pieces.
Type of Materials: NBR / BSR / PU / VITON / ANTISTATIC / SILICONE / HIGH-TENSILE SILICONE /
FFKM SILICONE / Class 1 / Class ZERO ESD
Hardness Range: 30-90 JIS A
Temperature Range: -55 to +200°C
Resistivity: 10p5-10p9
Drawing
| Model | OD | d | H | D | Model | OD | d | H | D | |
| SC30-5.5 | 6.2mm | 2.0mm | 5.6mm | 5.5mm | SC53-5.8 | 5.0mm | 2.5mm | 8.0mm | 5.8mm | |
| SC31-6 | 12.2mm | 5.3mm | 11.5mm | 6.1mm | SC53-6 | 6.0mm | 2.5mm | 7.0mm | 6.0mm | |
| SC31-10 | 12.5mm | 5.5mm | 11.1mm | 10.0mm | SC53-6.5 | 5.0mm | 2.3mm | 8.0mm | 6.5mm | |
| SC31S-11.5 | 12.5mm | 5.2mm | 9.7mm | 11.6mm | SC55-4.5 | 6.0mm | 3.0mm | 6.9mm | 4.8mm | |
| SC33-4 | 12.0mm | 5.0mm | 12.5mm | 4.0mm | SC55-6.5 | 6.0mm | 2.6mm | 5.6mm | 6.5mm | |
| SC33-6 | 12.0mm | 5.0mm | 12.5mm | 6.0mm | SC55-7 | 6.0mm | 2.6mm | 5.6mm | 7.0mm | |
| SC33-6LN | 12.0mm | 5.0mm | 13.5mm | 6.0mm | SC55-8 | 6.2mm | 3.0mm | 6.8mm | 8.0mm | |
| SC33-8 | 12.0mm | 5.0mm | 13.5mm | 8.0mm | SC55-14 | 7.1mm | 3.5mm | 11.7mm | 14.0mm | |
| SC33-10 | 12.0mm | 5.0mm | 13.0mm | 10.0mm | SC55-17 | 7.1mm | 3.5mm | 11.7mm | 17.0mm | |
| SC33-15 | 12.0mm | 5.0mm | 13.0mm | 15.0mm | SC56-36 | 23.0mm | 16.7mm | 11.3mm | 35.5mm | |
| SC34-20 | 13.0mm | 4.5mm | 16.0mm | 19.5mm | SC58-5 | 5.0mm | 2.2mm | 5.0mm | 5.0mm | |
| SC34-30 | 14.0mm | 4.5mm | 16.0mm | 30.0mm | SC59-2 | 1.9mm | 0.8mm | 3.6mm | 2.0mm | |
| SC36-7 | 9.0mm | 5.0mm | 6.0mm | 7.0mm | SC60-8 | 7.0mm | 4.0mm | 5.6mm | 8.2mm | |
| SC36-8 | 9.0mm | 5.0mm | 6.0mm | 8.0mm | SC61-6 | 4.0mm | 1.5mm | 12.0mm | 6.0mm | |
| SC37-6 | 15.0mm | 9.0mm | 12.0mm | 6.2mm | SC62-10 | 6.6mm | 2.8mm | 6.9mm | 10.3mm | |
| SC37-10 | 15.0mm | 9.0mm | 12.0mm | 10.0mm | SC62-13 | 8.2mm | 2.8mm | 6.9mm | 12.7mm | |
| SC37-13 | 15.0mm | 9.0mm | 11.3mm | 12.5mm | SC65-15 | 7.5mm | 3.5mm | 3.0mm | 15.0mm | |
| SC37-15 | 15.0mm | 9.0mm | 12.0mm | 15.0mm | SC66-24 | 14.5mm | 10.2mm | 10.3mm | 24.4mm | |
| SC38-15 | 16.0mm | 7.5mm | 16.0mm | 15.0mm | SC69-3 | 2.9mm | 1.5mm | 6.0mm | 2.9mm | |
| SC42-5S | 5.6mm | 2.8mm | 6.0mm | 4.6mm | SC72-5 | 4.0mm | 2.0mm | 5.3mm | 5.0mm | |
| SC42-6 | 3.0mm | 1.5mm | 5.0mm | 6.0mm | SC75-10 | 9.5mm | 5.4mm | 2.4mm | 10.5mm | |
| SC43-2 | 5.0mm | 2.0mm | 4.6mm | 2.0mm | SC82-3 | 4.0mm | 1.1mm | 4.0mm | 3.0mm | |
| SC43-3.5 | 5.0mm | 2.0mm | 4.6mm | 3.5mm | SC82-3.5 | 4.0mm | 1.2mm | 4.0mm | 3.5mm | |
| SC43-4V | 5.0mm | 2.0mm | 5.2mm | 4.2mm | SC82-5 | 5.8mm | 3.5mm | 3.8mm | 5.0mm | |
| SC43-6 | 5.0mm | 2.0mm | 5.0mm | 6.0mm | SC82-7.5 | 6.0mm | 2.6mm | 3.8mm | 7.5mm | |
| SC45-1.5 | 7.9mm | 4.6mm | 19.3mm | 2.4mm | SC83-18 | 6.0mm | 1.5mm | 7.5mm | 18.3mm | |
| SC45-3 | 7.9mm | 5.6mm | 19.3mm | 4.0mm | SC84-10 | 10.0mm | 4.0mm | 8.0mm | 10.0mm | |
| SC46-6 | 6.0mm | 3.0mm | 7.0mm | 6.0mm | SC84-14 | 10.0mm | 4.0mm | 9.3mm | 14.0mm | |
| SC48-6 | 6.0mm | 3.0mm | 4.0mm | 6.0mm | SC85-10 | 10.0mm | 7.4mm | 3.3mm | 10.0mm | |
| SC48-6A | 6.0mm | 3.0mm | 5.0mm | 6.0mm | SC99-6 | 7.0mm | 3.0mm | 4.0mm | 6.0mm | |
| SC49-7.5 | 5.7mm | 3.0mm | 6.0mm | 7.6mm | SC99S-3.5 | 15.2mm | 12.0mm | 8.0mm | 35.0mm | |
| SC50-8 | 6.0mm | 2.5mm | 12.0mm | 8.0mm | SC101-6 | 6.0mm | 2.5mm | 7.0mm | 6.0mm | |
| SC52S-3.5 | 4.0mm | 2.5mm | 5.3mm | 3.5mm | SC102-3 | 3.0mm | 0.6mm | 3.7mm | 2.8mm |
